2-Channel Isolated RS485 Expansion Board Communication module for Raspberry Pi 4B/3B+2024-04-26T16:07:16+08:00

Project Description

  • RS485 Expansion Board Raspberry Pi 4B/3B+
  • RS485 Expansion Board Raspberry Pi 4B/3B+
  • RS485 Expansion Board Raspberry Pi 4B/3B+
  • RS485 Expansion Board Raspberry Pi 4B/3B+

2-Channel Isolated RS485 Expansion Board Communication module for Raspberry Pi 4B/3B+

  • FOB Reference Price

Get The Latest Price
  • $12.5 – $14.7/ Piece     |     5 Piece/Pieces (Min. Order)

  • Lead Time

Quantity(Pieces) 10- 100 >100
Est. Time(days) 3 Negotiable
  • Payment: L/C,  T/T, Western Union, MoneyGram, Paypal payments

Request A Sample !
11
44 2
123

Quick Details

Item Name: 2-Channel Isolated RS485 Expansion Board Communication module for Raspberry Pi 4B/3B+ Model No.: MD-RPME34-10
Brand: MaidaTech Material: PCB
Style: expansion board Compatible: Raspberry Pi 4B/3B+
Original: China( Mainland) Size:  —
Products catalogue Raspberry Pi 4b Modules & Expansion Boards Customization: Logo/ Graphic/packaging
package paper box package or custom MOQ 5 pcs

More Details

Name: 2-Channel Isolated RS485 Expansion Board Communication module for Raspberry Pi 4B/3B+

Product details

Characteristics

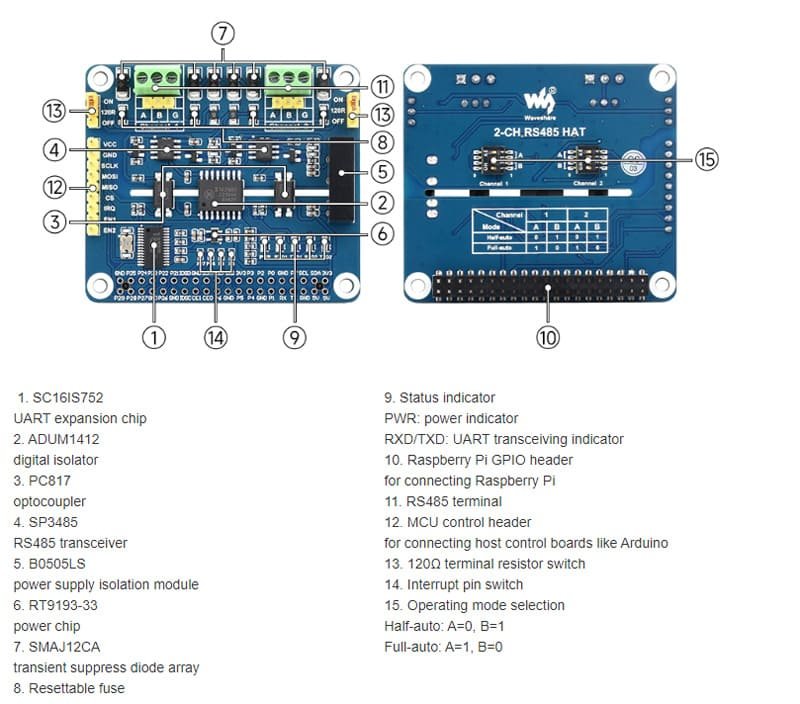

Introducing a versatile 2-channel isolated RS485 expansion HAT meticulously crafted for Raspberry Pi enthusiasts. This ingenious device incorporates the SC16IS752+SP3485 solution and features a range of embedded protective mechanisms including power supply isolation, ADI magnetic isolation, and TVS diodes, among others.

Its user-friendly design facilitates effortless control of the 2-channel RS485 communication through the SPI interface. Thanks to its rapid data transmission, unwavering stability, reliability, and robust safety measures, it emerges as the preferred choice for a myriad of applications, particularly in the realm of industrial automation.

Key Features:

  1. Compatibility with Standard Raspberry Pi 40PIN GPIO extension headers, ensuring seamless integration with various Raspberry Pi series boards.
  2. Utilizes the SC16IS752+SP3485 dual chip combination to seamlessly convert SPI signals into RS485, achieving impressive data rates of up to 921600bps.
  3. Offers the flexibility of manual or automatic data transceiving, easily configured via the onboard DIP switch.
  4. Equipped with an onboard TVS (Transient Voltage Suppressor) that effectively neutralizes surge voltage and transient spikes in the circuit, rendering it lightning-proof and anti-electrostatic.
  5. Features an onboard resettable fuse and protection diodes to maintain consistent current and voltage outputs, ensuring protection against over-current and over-voltage, while enhancing shock resistance.
  6. Includes onboard LEDs for clear indications of power status and transceiver activity.
  7. Convenient breakout SPI control pins for seamless integration with host control boards, such as Arduino.
  8. Supplemented with a wealth of online development resources and a comprehensive manual, replete with practical examples in both C and Python programming languages.
UART EXPANSION CHIP
SC16IS752
RS485 TRANSCEIVER
SP3485
COMMUNICATION INTERFACE
SPI
DATA RATE
300 ~ 921600 bps
OPERATING VOLTAGE
3.3V / 5V

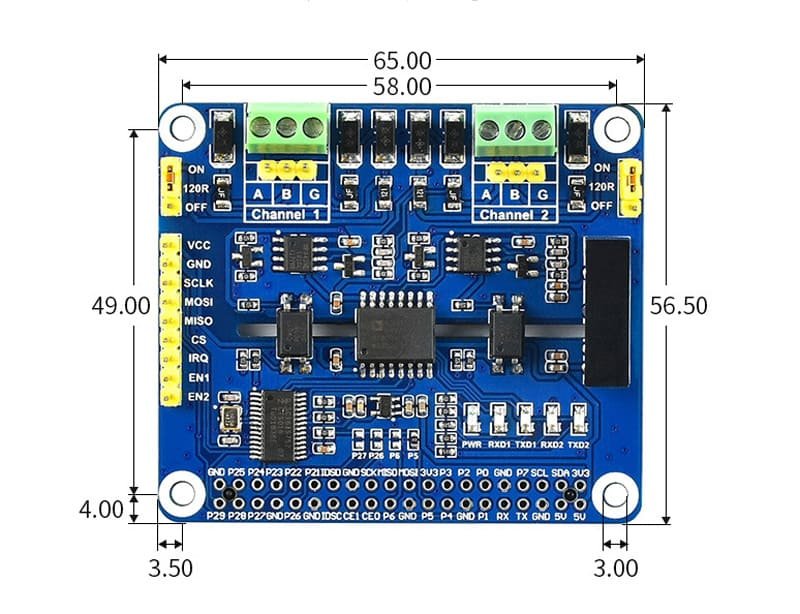

DIMENSIONS
65.0 × 56.5mm
MOUNTING HOLE SIZE
3.0mm

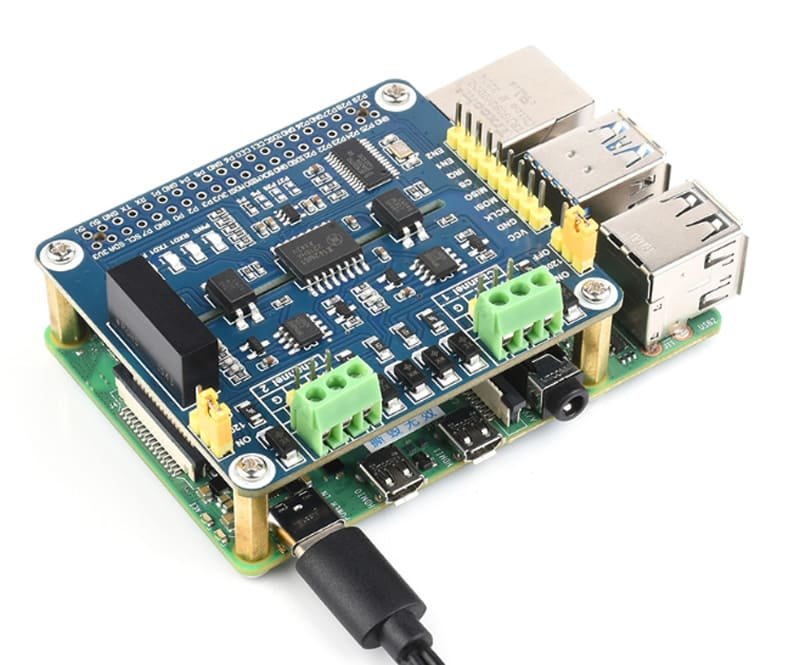

333 3

333 2

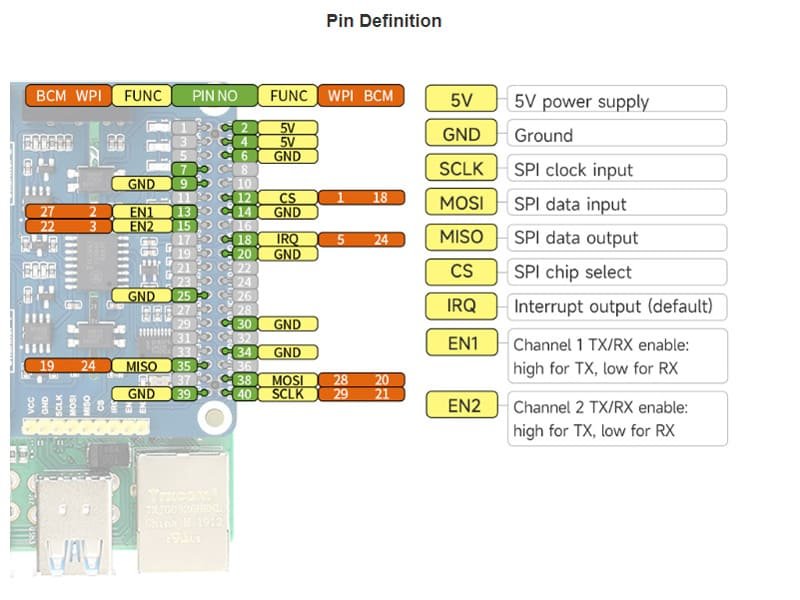

333 1

22 17
