Project Description
Audio Expansion Module for Raspberry Pi Pico Concurrently Headphone / Speaker Output
FOB Reference Price
$9.55 – $13.95/ Piece | 5 Piece/Pieces (Min. Order)
Lead Time
| Quantity(Pieces) | 10- 100 | >100 |
|---|---|---|
| Est. Time(days) | 3 | Negotiable |
Payment: L/C, T/T, Western Union, MoneyGram, Paypal payments
Quick Details
| Item Name: | Audio Expansion Module for Raspberry Pi Pico Concurrently Headphone / Speaker Output | Model No.: | MD-RPPICO-M-1 |
|---|---|---|---|
| Brand: | MaidaTech | Material: | PCB |
| Style: | expansion board | Compatible: | Raspberry Pi Pico |

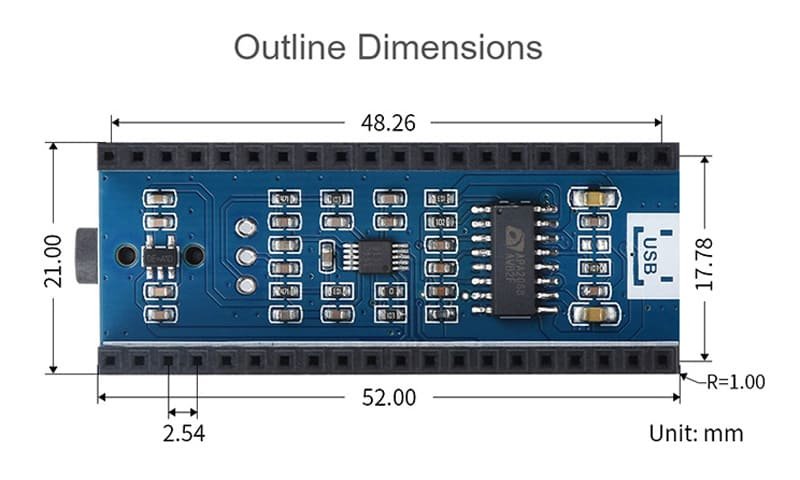

| Original: | China( Mainland) | Size: | 52*21mm |
| Products catalogue | Raspberry Pi Pico expansion board | Customization: | Logo/ Graphic/packaging |
| package | paper box package or custom | MOQ | 5pcs |
More Details
Name: Audio Expansion Module for Raspberry Pi Pico Concurrently Headphone / Speaker Output
Product Features：

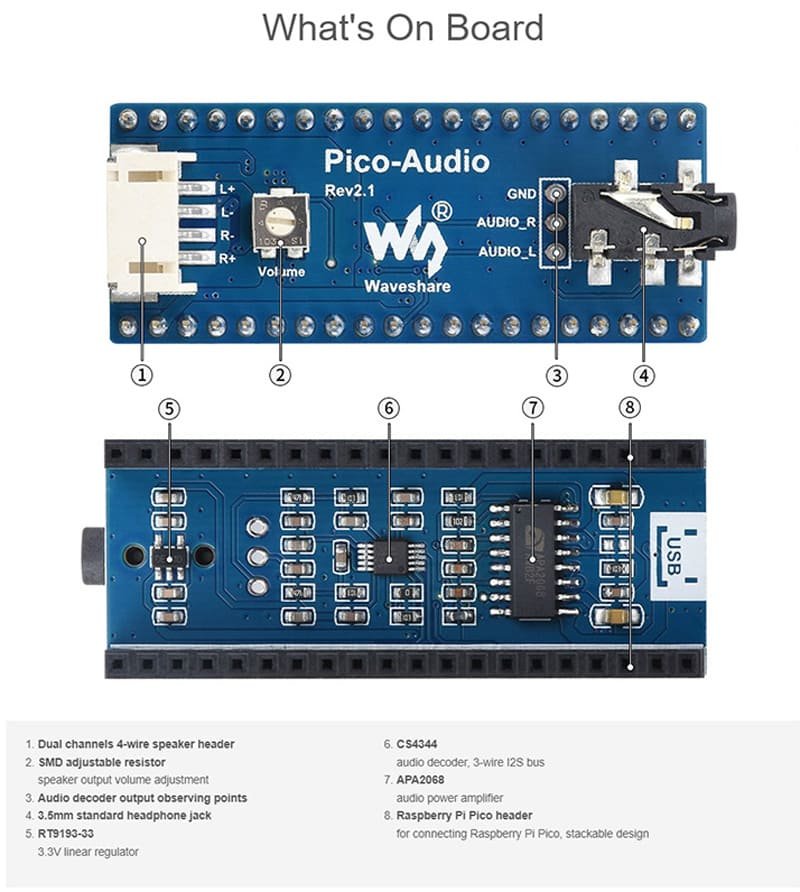

- The Pico-Audio is an audio expansion module designed for the Raspberry Pi Pico.
- It incorporates the PCM5101A low-power stereo decoder and uses the I2S bus for audio signal transmission.
- The module supports a wide range of audio sampling rates.
- It enables simultaneous headphone and speaker signal output.

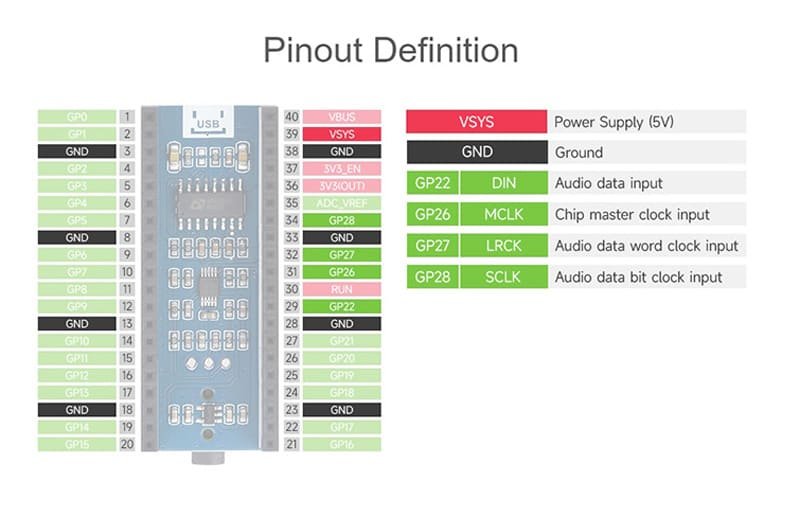

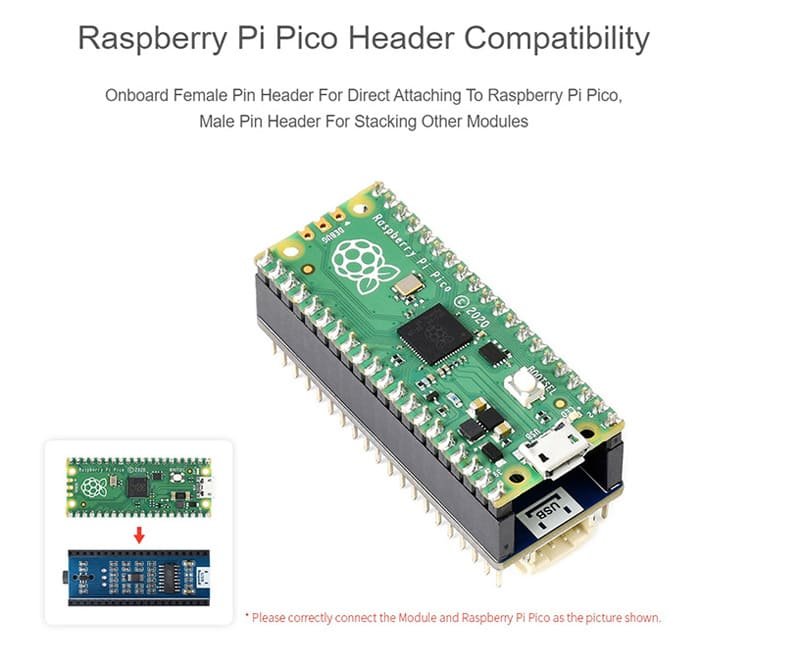

- Features a standard Raspberry Pi Pico header, making it compatible with the Raspberry Pi Pico series.
- Equipped with a standard 3.5mm audio jack for connecting external headphones.
- Dual-channel speaker headers are available for directly driving speakers.
- Supports audio sampling rates from 8Hz to 384,000Hz.
- Provides stereo sound effect output.
- Utilizes a 3-wire I2S configuration to effectively reduce electromagnetic interference (EMI).
- Comes with development resources and a manual, including Raspberry Pi Pico audio playback code and sound card code.
Specifications
| OPERATING VOLTAGE | 5V | LOGIC LEVEL | 3.3V |
|---|---|---|---|
| AUDIO DECODER | PCM5101A | AUDIO BUS | I2S |
| DAC SNR | 106 dB | SPEAKER DRIVING | 2.6W/channel (4Ω BTL) |
More Details:
Audio Expansion Module for Raspberry Pi Pico Concurrently Headphone / Speaker Output
● Introduction:
High-Quality Audio Expansion Module for Raspberry Pi Pico Concurrently Headphone / Speaker Output
● FOB Reference Price
$9.55 – $13.95/ Piece | 5 pieces/ Piece (Min. Order)
>>Request a sample<<
● Lead Time:
| Quantity(Pieces) | 10- 100 | >100 |
|---|---|---|
| Est. Time(days) | 3 | Negotiable |
● Customization:
| Customization | Customized logo | Customized packaging | Graphic customization |
|---|---|---|---|
| Quantity(Pieces) | 200 | 500 | 2000 |
● Package & Delivery
| package | opp plastic clear bag, then into a carton |
|---|---|
| shipping way | sample: air express or China post /mass products: by air express or by sea |
● Payment:
L/C, T/T, Western Union, MoneyGram, Paypal payments
