Jetson Orin Nano/Nano NX AI Expansion Development Board2024-04-26T11:28:56+08:00

Project Description

  • Jetson Orin Nano/Nano NX AI Expansion Development Board
  • Jetson Orin Nano/Nano NX AI Expansion Development Board
  • Jetson Orin Nano/Nano NX AI Expansion Development Board
  • Jetson Orin Nano/Nano NX AI Expansion Development Board
  • Jetson Orin Nano/Nano NX AI Expansion Development Board
  • Jetson Orin Nano/Nano NX AI Expansion Development Board

Jetson Orin Nano/Nano NX AI Expansion Development Board

  • FOB Reference Price

Get The Latest Price
  • $86.9 – $92.9/ Piece     |     5 Piece/Pieces (Min. Order)

  • Lead Time

Quantity(Pieces) 10- 100 >100
Est. Time(days) 3 Negotiable
  • Payment: L/C,  T/T, Western Union, MoneyGram, Paypal payments

Request A Sample !
11
44 2
123

Quick Details

Item Name: Jetson Orin Nano/Nano NX AI Expansion Development Board Model No.: MD-JN-ME-1
Brand: MaidaTech Material: pcb
Style: Jetson nano expansion board Compatible: JETSON-ORIN-IO-BASE
Original: China( Mainland) Size:  —
Products catalogue Jetson nano Expansion Boards & Modules Customization: Logo/ Graphic/packaging
package paper box package or custom MOQ 5 pcs

More Details

Name: Jetson Orin Nano/Nano NX AI Expansion Development Board

Product details

Product details

Jetson Orin Nano/NX AI Development Board, Waveshare Orin Nano/NX Development Board Based On Jetson Orin Nano And Jetson Orin NX Module

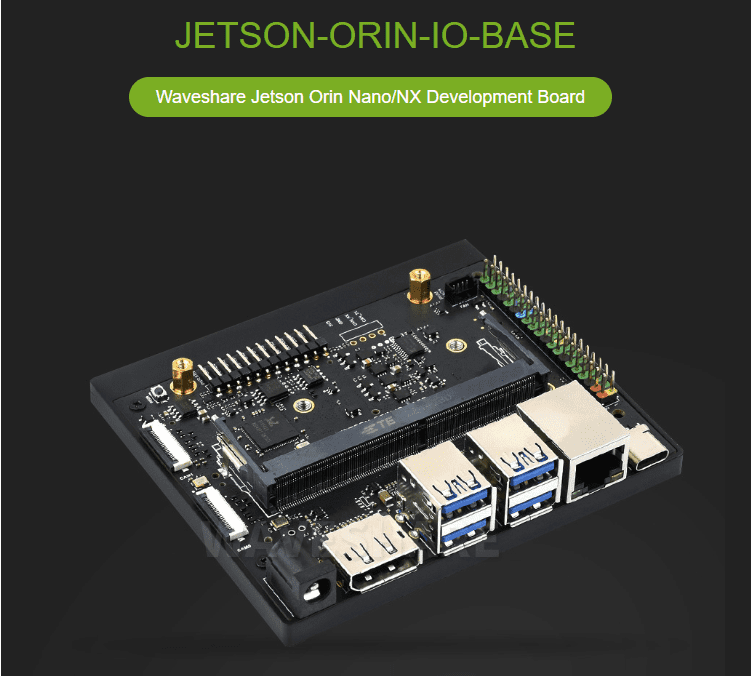

JETSON-ORIN-IO-BASE

Waveshare Jetson Orin Nano/NX Development Board

111

Based on Jetson Orin Nano and Jetson Orin NX module, provides almost the same peripheral interfaces, size, and thickness as the Jetson Orin Nano Developer Kit (Official Orin Nano kit), which is suitable for users to develop their applications and apply to various AI projects.

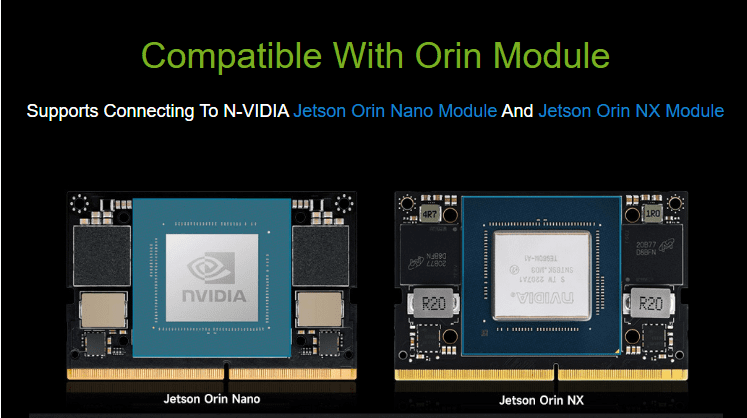

Compatible With Orin Module

Supports Connecting To N-VIDIA Jetson Orin Nano Module And Jetson Orin NX Module

222

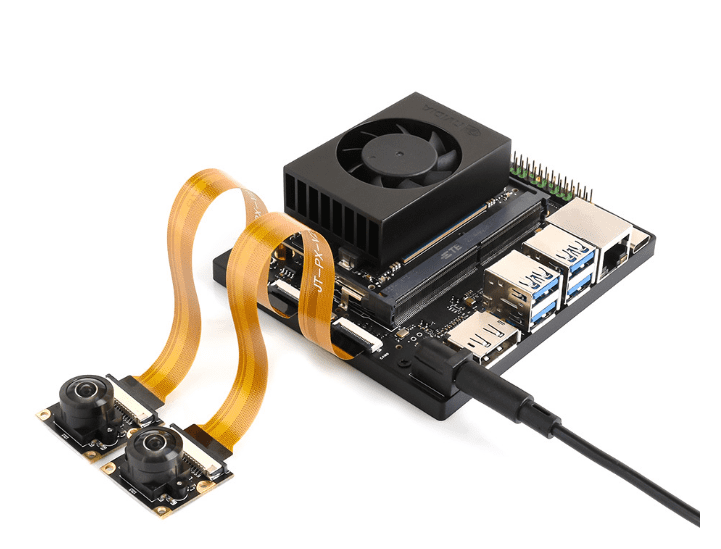

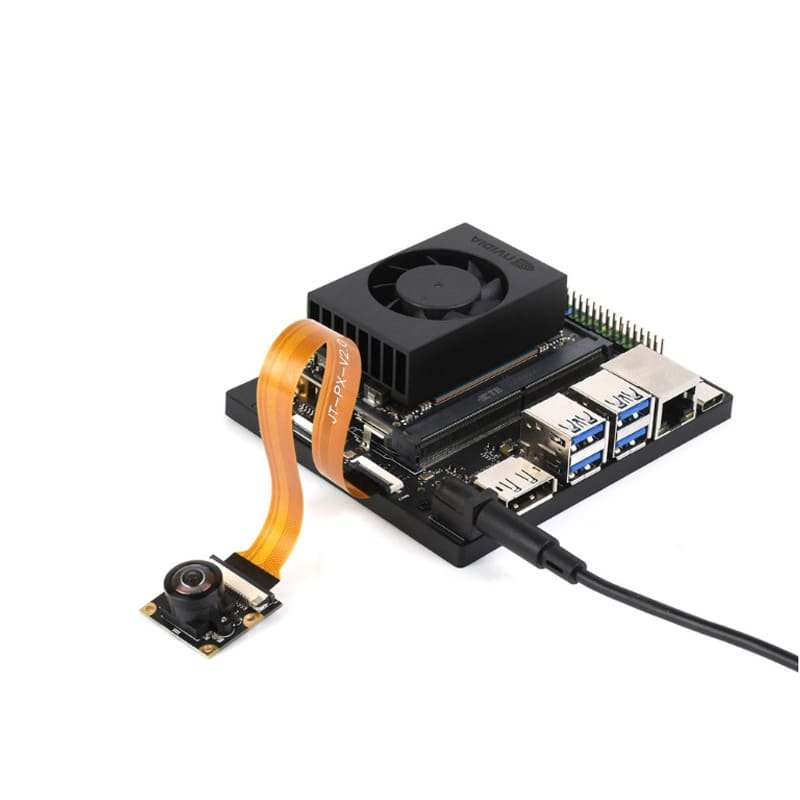

Connect To CSI Camera

2× 4-Lane CSI Camera Ports For AI Applications Such As Face Recognition, Road Sign Recognition, And License Plate Recognition

333

* Note: the adapter cable is required for connecting the camera.

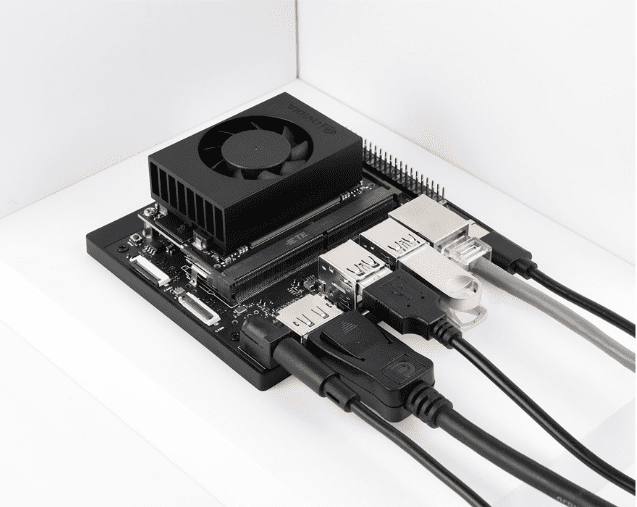

5× USB Ports

4× Tyep-A + 1× Type-C

Supports Connecting To More Peripherals, USB 3.2 Gen 2 Ports For Data Transmission Up To 10Gbps, And The Type-C Port Can Be Used For System Burning

444

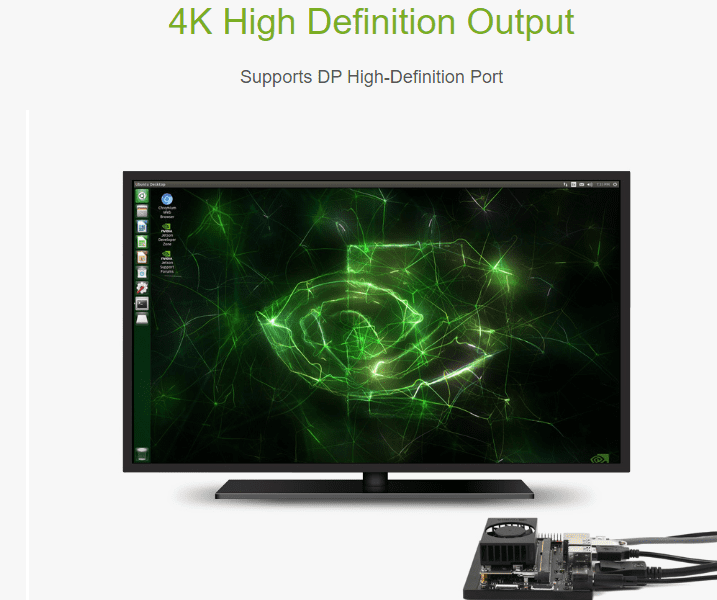

4K High Definition Output

Supports DP High-Definition Port

555

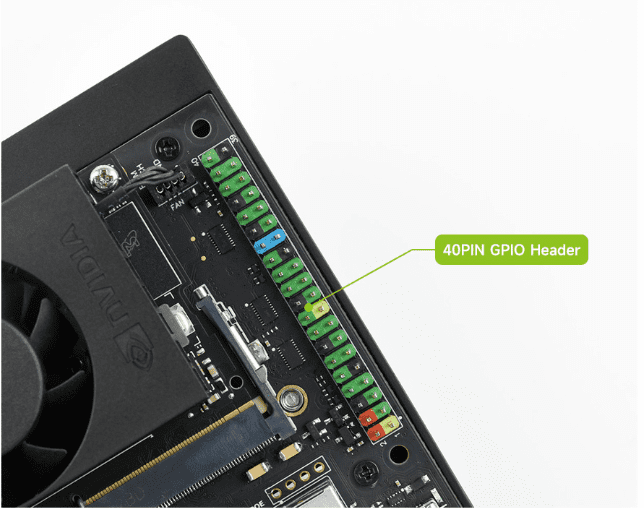

Color-Coded 40PIN GPIO Header

Color-Coded Header Pins To Differentiate IO Resources Such As I2C, SPI, I2S, UART, GPIO, Etc.

666

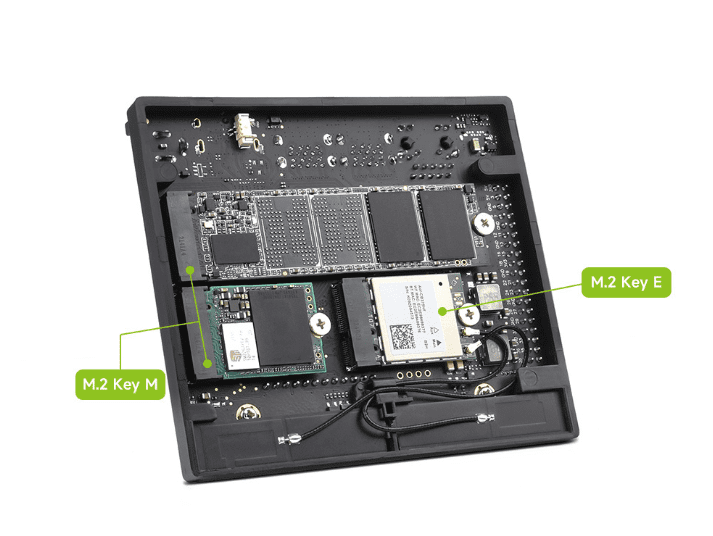

Flexible Storage And Wireless Expansion

Onboard 2× M.2 Key M Ports For Easy Connecting Solid State Drives And 1× M.2 Key E Interface For Connecting Wireless NIC, Which Can Reduce Cable Connection

777

* for reference only, the Solid State Drive and wireless network card are NOT included.

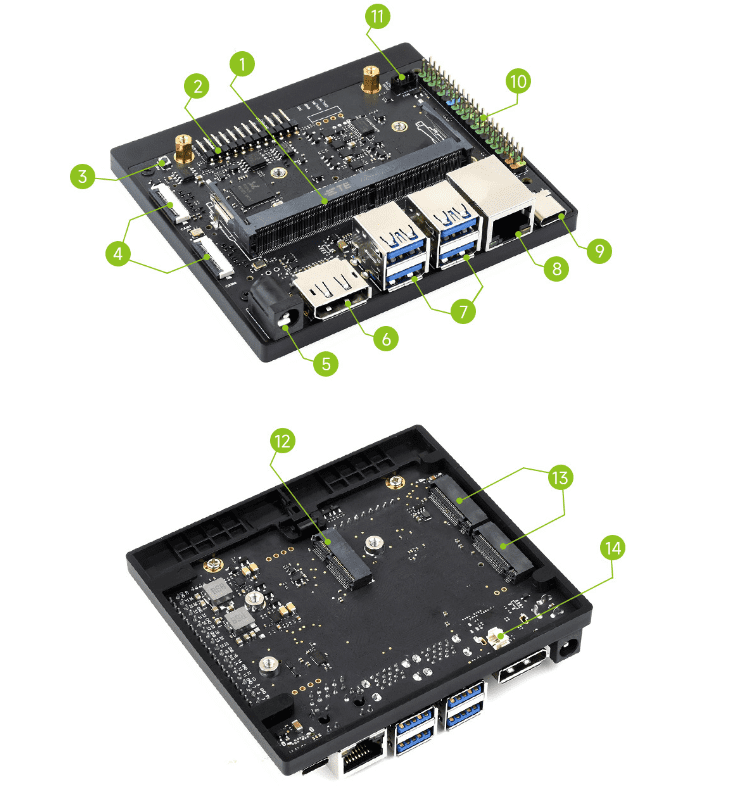

Onboard Resource

888

  1. 260PIN DO-DIMM socket
    for connecting the Jetson Orin Nano/NX module
  2. 12PIN header
    Adapting pins for power supply, reset button, force recovery setting, serial port debug, auto power-up enable, and power indicator functions
  3. Power button
  4. 2× 22PIN CSI camera connectors
  5. DC Power jack
    Supports wide range 9V~19V power supply, compatible with 5.5 × 2.4mm male plug
  6. DisplayPort connector
    Supports 4K display
  7. 4× USB 3.2 Gen2 Type A ports
    Supports up to 10Gbps data transmission
  1. RJ45 Gigabit Ethernet port
  2. USB Type-C Interface
    for system burning and data communication
  3. 40PIN header
  4. 4PIN PWM fan header
  5. M.2 Key E
    for connecting wireless NIC
  6. 2x M.2 Key M
    for connecting NVME solid-state drives
  7. RTC backup battery header

Jetson Orin Nano/Nano NX AI Expansion Development Board

●  Introduction:

High-Quality Jetson Orin Nano/Nano NX AI Expansion Development Board

●  FOB Reference Price

$86.9 – $92.9/ Piece   |     5 pieces/ Piece (Min. Order)

>>Request a sample<<

●  Lead Time:

Quantity(Pieces) 10- 100 >100
Est. Time(days) 3 Negotiable

●  Customization:

Customization Customized logo Customized packaging Graphic customization
Quantity(Pieces) 200 500 2000

Package & Delivery

package opp plastic clear bag, then into a carton
shipping way sample: air express or China post   /mass products: by air express or by sea

● Payment:

L/C,  T/T, Western Union, MoneyGram, Paypal payments
