Factory Offer Orange Pi R1 Plus LTS 1GB Development Board2024-04-26T15:52:05+08:00

Project Description

  • Orange Pi R1 Plus LTS Board
  • Orange Pi R1 Plus LTS Board
  • Orange Pi R1 Plus LTS 1GB Development Board
  • Orange Pi R1 Plus LTS Board
  • Orange Pi R1 Plus LTS Board

Factory Offer Orange Pi R1 Plus LTS 1GB Development Board

  • FOB Reference Price

Get The Latest Price
  • $29.5 – $39.5/ Piece     |     5 Piece/Pieces (Min. Order)

  • Lead Time

Quantity(Pieces) 10- 100 >100
Est. Time(days) 3 Negotiable
  • Payment: L/C,  T/T, Western Union, MoneyGram, Paypal payments

Request A Sample !
11
44 2
123

Quick Details

Item Name: Factory Offer Orange Pi R1 Plus LTS 1GB Development Board Model No.: MD-OPB-1
Brand: MaidaTech Material: PCB
Style: develop board Compatible: Orange PI
Original: China( Mainland) Size:  —
Products catalogue Raspberry Pi 4b Modules & Expansion Boards Customization: Logo/ Graphic/packaging
package paper box package or custom MOQ 5 pcs

More Details

Name: Factory Offer Orange Pi R1 Plus LTS 1GB Development Board

Product details

Orange Pi R1 Plus LTS is an open-source single-board computer with Dual Gigabit Ethernet ports. It is highly compact with a dimension of 56X57mm. It can run OpenWRT, Ubuntu, and Debian.

PRODUCT INTRODUCTION

Orange Pi R1 Plus LTS 1GB Development Board

Orange Pi R1 Plus LTS uses the Rockchip RK3328 SoC, Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz, and 1GB LPDDR3 SDRAM. It integrates a cooling fan connector, USB 2.0 port, TF card slot, 13-pin headers, etc. It is powered through Type-C. It is suitable for industrial control needs.

Hardware Specification

CPU • Rockchip RK3328
• Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz
GPU • Mali-450MP2
• Supports OpenGL ES 1.0/2.0
Power management chip RK805
Memory(SDRAM) 1GB LPDDR3(Not Shared With GPU)
Onboard Storage • Micro-SD Card slot
• 16MB SPI Flash
Onboard Network • 10M/100M/1000M Ethernet (YT8531C)
• 10M/100M/1000M USB Ethernet (RTL8153B)
Video Output TV CVBS output(Via 13pin interface board)
Audio output 3.5mm audio port(Via 13pin interface board)
Power Source USB Type-C Interface 5V/2A Input
USB 1x USB 2.0 HOST
Low-level peripherals 13pin header with IR pin,Tv-out,AUDIO(no MIC), 2xUSB2.0(not support)and 1 GPIO port Note: 13Pin Headers Will Not Be Welded
Debug serial port UART-TX, UART-RX and GND
Button 1x Reset Button
Fan interface 1x cooling fan interface (5V)
LED Power LED & Status LED
Supported OS OpenWRT, Ubuntu,Debian

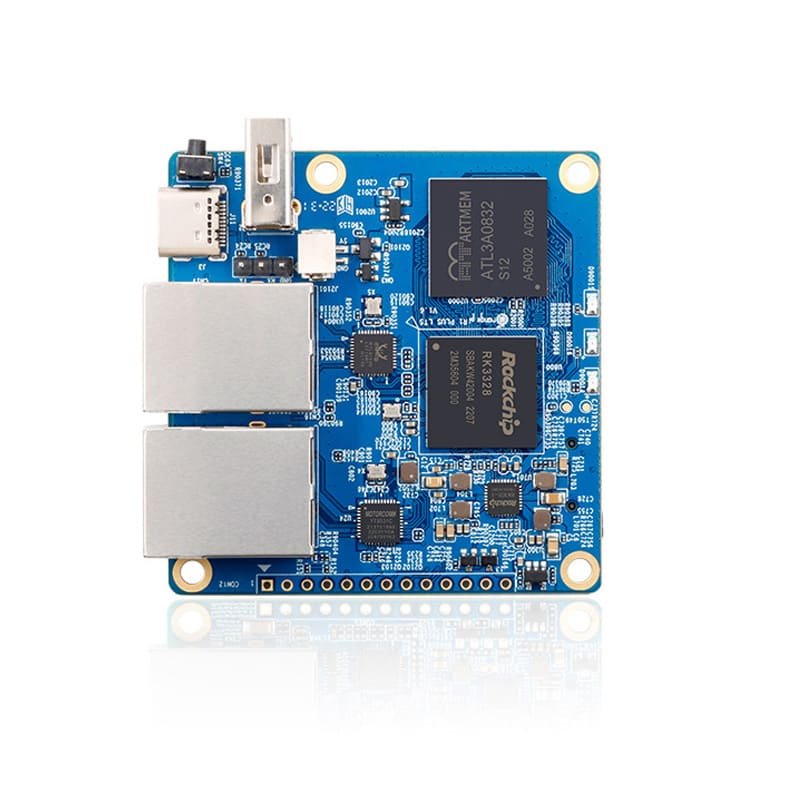

TOP VIEW

Orange Pi R1 Plus LTS 1GB Development Board

BOTTOM VIEW

Orange Pi R1 Plus LTS 1GB Development Board

Orange Pi R1 Plus LTS v1.6 pinout diagram

Orange Pi R1 Plus LTS 1GB Development Board

 PRODUCT DISPLAY

Orange Pi R1 Plus LTS 1GB Development BoardOrange Pi R1 Plus LTS 1GB Development Board

Factory Offer Orange Pi R1 Plus LTS 1GB Development Board

●  Introduction:

High-Quality Factory Offer Orange Pi R1 Plus LTS 1GB Development Board

●  FOB Reference Price

$29.5 – $39.5/ Piece   |     5 pieces/ Piece (Min. Order)

>>Request a sample<<

●  Lead Time:

Quantity(Pieces) 10- 100 >100
Est. Time(days) 3 Negotiable

●  Customization:

Customization Customized logo Customized packaging Graphic customization
Quantity(Pieces) 200 500 2000

Package & Delivery

package opp plastic clear bag, then into a carton
shipping way sample: air express or China post   /mass products: by air express or by sea

● Payment:

L/C,  T/T, Western Union, MoneyGram, Paypal payments
