Project Description

Ultimate Dual Cooling Fan For Raspberry Pi 3/4B

This Raspberry dual Cooling Fan is made of top aluminum alloy and dual fans, It is the best Fan kit for the raspberry pi kit, No need for more heatsink with this dual fan, This dual cooling fan has the excellent features of high speed and low noise. It can be very close to the heating chip for better heat dissipation. with thermal adhesive 3M tape under this set to help ensure efficient and swift cooling of the processor. Compatible with pi 3/ 3b+/ 4B. the wholesale price is directly from MaidaTech manufacturer.

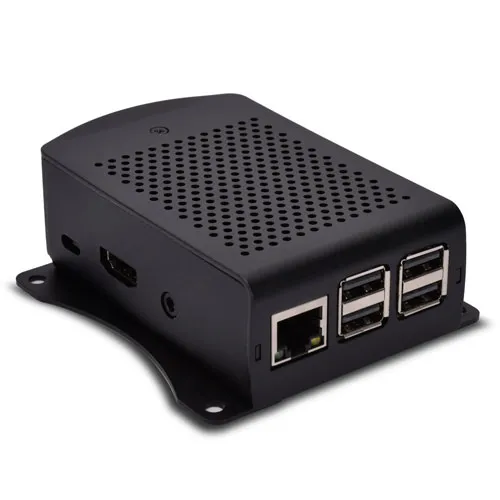

We also have the dual fan Aluminum Armour Case perfect use together with this dual fan, you can check it

  • FOB Reference Price

Get The Latest Price
  • $2.55 – $3.95/ Piece     |     10 Piece/Pieces (Min. Order)

  • Lead Time

Quantity(Pieces) 10- 100 >100
Est. Time(days) 3 Negotiable
  • Payment: L/C,  T/T, Western Union, MoneyGram, Paypal payments

Request A Sample !

Quick Details

Item Name: Raspberry Pi Dual Cooling Fan for Pi 3 4 Model No.: MD-RPI4BP-F-1
Brand: MaidaTech Material: ABS plastic/Aluminum
Color: black Compatible: raspberry pi 3/3B+4
Original: China( Mainland) Size: 25mm * 50mm * 13mm
Products Catalog raspberry pi 4 heatsink &fan Customization: logo/ Graphic/packaging
package paper box package or custom MOQ 10pcs

More Details

Name: Ultimate Dual Cooling Fan For Raspberry Pi 3/4B

Model No.: MD-RPI4BP-F-1

Description:

Are you worried about the Raspberry Pi overheating when a long timer running? Whether it’s in a hot environment or your RPi is in a situation of non-stop working, we have a solution for you-the Raspberry Pi Ultimate Cooling Dual Fan set!

The dual cooling fan has the excellent features of high speed and low noise. It can be very close to the heating chip for better heat
dissipation. It’s a good solution set for Raspberry Pi 4 Model B And Raspberry Pi 3 Model B+(Plus), especially for non-stop working.

With 3M thermal tape under this set to help ensure efficient and swift cooling of the processor. It is excellent and efficient and passed our
test. It’s ideal for your Raspberry Pi 3 Model B/pi 4, and it was designed to be compatible with most of the cases in the market. We believe this
will bring you a fantastic user experience!

Features:

  • It is conductive silicone grease viscose on the back so it can be easily attached to the components.
  • Easy to install, quick heat dissipation, silent fan without noise, smooth and straight aluminum material which looks very nice.
  • This dual fan greatly increases the heat dissipation area and good thermal conductivity.
  • Compatible: for Raspberry Pi 3 3B+ & Raspberry Pi 4B
  • Ultimate cooling fan kit for Raspberry Pi 3/2/B+/4B

Dual fan parameters:

Voltage 5 V.
Current: 0.3A
Speed: 7500rpm/min
Weight: 40g approx.
Color: Black
Material: metal + plastic
Size: 25mm * 50mm * 13mm

Test Report

Test Environment Temperature: 26.8°C
Hardware Environment: Raspberry Pi 3 Model B
TF card: 8GB Class 10
Software Environment: Raspbian (OS)
Testing Hardware’s Freq 1200MHzTesting Time 10 minutes

Result

Without Heatsink: 83.5°C
With heatsink: 77°C
Dual Fans with Heatsink: 62°C

GPIO Connection:

Package content:

1 * Dual fan

You May Also be interesting:

Raspberry Pi dual fan case

raspberry pi heatsink

raspberry pi power supply

Raspberry Pi single fan mold

Ultimate Dual Cooling Fan For Raspberry Pi 3/4B

●  Introduction:

This Raspberry dual Cooling Fan is made of high-quality ABS plastic and aluminum alloy material, with 5v 0.3 A, Size: 25mm * 50mm * 13mm. wholesale price, one-year quality guarantee, compatible with the Raspberry Pi 3 3B+ and Pi 4.

●  FOB Reference Price

$2.55– $3.95  piece    |     10 pieces/ Piece (Min. Order)

>>Request a sample<<

●  Lead Time:

Quantity(Pieces) 10- 100 >100
Est. Time(days) 3 Negotiable

●  Customization:

Customization Customized logo Customized packaging Graphic customization
Quantity(Pieces) 200 500 2000

Package & Delivery

package opp plastic clear bag, then into a carton
shipping way sample: air express or China post   /mass products: by air express or by sea

● Payment:

L/C,  T/T, Western Union, MoneyGram, Paypal payments

How to Install the Raspberry Pi dual fan?

you can check the below video
