7 Inch Raspberry Pi Touch Screen Monitor Module

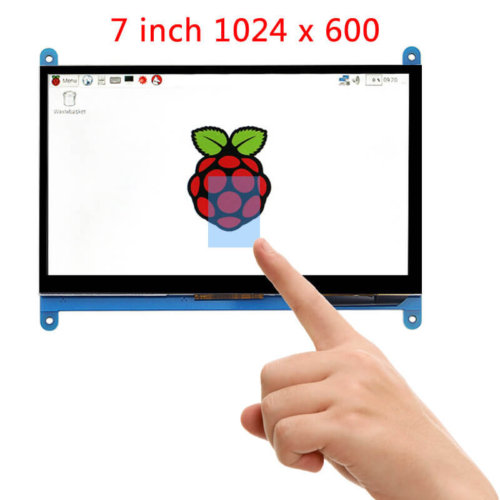

This raspberry pi 3 LCD touch screen is with HDMI LCD Display 800*480/HDMI LCD Display 1024*600 for selection, with different kits for choosing.

we also have another size touch screen. if you need a 3.5-inch TFT LCD display or case, can contact us.

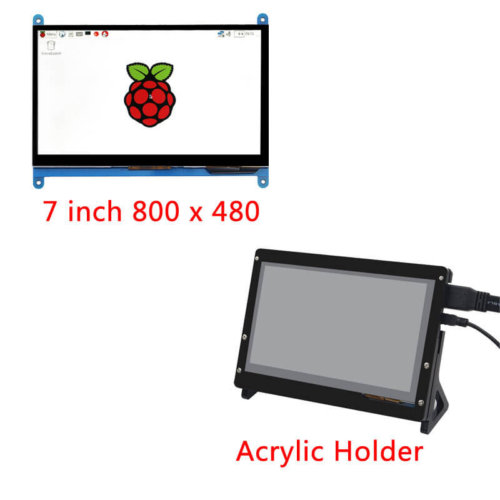

This raspberry pi 3 LCD touch screen also can come together with an acrylic touchscreen stand to hold it.

  • FOB Reference Price

Get The Latest Price
  • $37– $52.5 piece   |     5 set/set (Min. Order)

  • Lead Time

Quantity(Pieces) 10- 100 >100
Est. Time(days) 3 Negotiable
  • Payment: L/C,  T/T, Western Union, MoneyGram, Paypal payments

Request A Sample !
11
44 2
123

Quick Details

Item Name: 7 Inch Raspberry Pi Touch Screen Monitor for Pi 3 TFT Monitor Module Model No.: MD-RPI3BP-SC-1
Brand: MaidaTech Material: copper/aluminum/plastic
Color: black Compatible: raspberry pi 3/3B+
Original: China( Mainland) Size: as the description
Products Catalog Raspberry Pi 3 LCD screen Customization: logo/ Graphic/packaging
package Opp bag or paper box package MOQ 5 set

More Details

Name: 7 Inch Raspberry Pi 3 Lcd Touch Screen TFT Monitor Module

catalog: Raspberry Pi LCD&Screen

Note: The LCD just support Rapsbian, Ubuntu, and Win 10 system, if you want to use the other system image on your own, you need to configure the driver to your system by yourself.

Features:

  • Resolution: 1024*600 or 800*480, you can choose as you want
  • USB interface capacities touch, more convenient
  • Support the back-light control, which saves energy
  • Support the Raspberry Pi, provide Raspbian, Ubuntu, and Win 10 system images in the CD
  • General HDMI display, can be used as a computer monitor ( touch function cannot be used )
  • HDMI interface is used to display and the USB interface is used to touch
  • This 7-inch Raspberry Pi Touch Screen Monitor is designed especially for Raspberry Pi 3/2 /B+, supports portable power, convenient for DIY projects

About the system image :

  1. Use the images for this touchscreen on the CD directly.
  2. Configure the Raspbian system :
    • Install the raspbian system to your sd card, and open the sd card on your computer.
    • Open the config.txt file in the root directory of the sd card, add the following code at the end of the file, save it, and safely eject the sd card

Code for 800*480 7-inch touchscreen:

max_usb_current=1
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 800 480 60 6 0 0 0

Code for 1024*600 7-inch touchscreen:

max_usb_current=1
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 1024 600 60 6 0 0 0

3. For Raspberry Pi 3B+, please refer to this link.
https://github.com/goodtft/LCD-show

Raspberry Pi Touch Screen Monitor, usually sell with 4 kits, and the Package list is as below:

Kit 1

  • 1 x 7 inch HDMI LCD Display 800*480
  • 1 x HDMI Cable
  • 1 x USB Cable
  • 1 x CD

Kit 2

  • 1 x 7 inch HDMI LCD Display 1024*600
  • 1 x HDMI Cable
  • 1 x USB Cable
  • 1 x CD

Kit 3

  • 1 x 7 inch HDMI LCD Display 800*480
  • 1 x HDMI Cable
  • 1 x USB Cable
  • 1 x CD
  • 1 x Acrylic Case

Kit 4

  • 1 x 7 inch HDMI LCD Display 1024*600
  • 1 x HDMI Cable
  • 1 x USB Cable
  • 1 x CD
  • 1 x Acrylic Case

FAQ
1. Question:
Why the LCD doesn’t work with my Raspbian system?

Answer:
To use the LCD with the Raspberry Pi official system, you need to install the driver to the system first. But for the first testing for the LCD, you had better use the system image we provided directly

2. Question:
Why does the LCD still not work with the system image we provided?

Answer:
Please make sure the hardware connection is correct and connects fine.
Make sure you install the system image to the SD card correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the system image was installed incorrectly or the SD card was in bad contact.

3. Question:
Which power supply should I use?

Answer:
We recommended using a stand-alone 5V/2A to 5V 3A power adapter because the USB port of the PC might not supply enough steady power for supporting the Raspberry Pi and LCD.
