China Raspberry Pi 4 Heatsink Black Silver Set (4pcs) with Wholesale Price

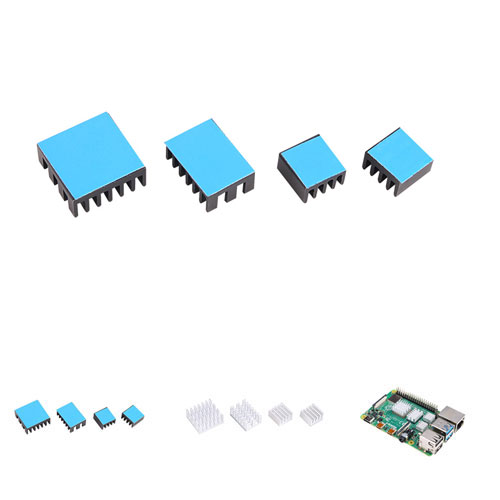

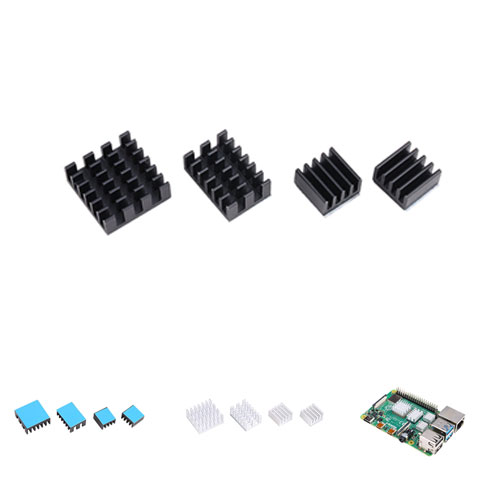

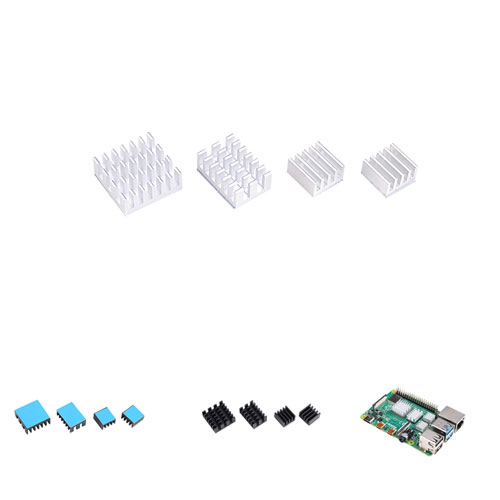

MaidaTech Raspberry Pi 4 Heatsink is made of top aluminum alloy, 4 pieces of black/silver of this rpi aluminum heatsink as one set. All size is 14*14*5mm, 5*14*9mm for CPU cooler heatsink, and 9*9*5mm(2pcs). This heatsink also combined utilization with an aluminum heatsink case for better heat dissipation. One opp clear small bag packed for each set. Factory wholesale good price is easy to install, it can be used with a backside thermal pad put to the board directly. The pi 4 heatsink placement instruction please find below FQA. It is compatible with raspberry pi 4B

  • FOB Reference Price

Get The Latest Price
  • $0.3 – $0.59/ set     |     50 set/set (Min. Order)

  • Lead Time

Quantity(Pieces) 10- 100 >100
Est. Time(days) 3 Negotiable
  • Payment: L/C,  T/T, Western Union, MoneyGram, Paypal payments

Request A Sample !

Quick Details

Item Name: Raspberry Pi 4 Heatsink Black Silver colors (4pcs) Model No.: MD-RPI4BP-HS-3
Brand: MaidaTech Material: aluminum
Color: black/silver Compatible: raspberry pi 4
Original: China( Mainland) Size: 16mm*9mm*6mm
Products Catalog raspberry pi 4 heat sink Customization: logo/ Graphic/packaging
package Opp bag package or custom MOQ 50 set

More Details

Name: China Raspberry Pi 4 Heatsink Black Silver Set (4pcs) for sale

Model No.: MD-RPI4BP-HS-3

Catalog: raspberry pi Heat Sink

Description:

The raspberry pi 4 heatsink includes adhesive thermal tape backside for efficient thermal transfer to the heat sink. The surface is smooth and exquisite, And the buckled card slot is perfectly designed for heat dissipation. This heatsink can be applied in other devices such as the BeagleBone to cool processors, regulators, etc. It can use together with a cooling fan for better heat dissipation.

Feature:

  • Material: 4 x aluminum alloy ( black with surface oxidization treatment)
  • colors: black/ silver option
  • size: 14*14*5mm / 5*14*9mm /9*9*5mm(2pcs)
  • weight: around 7g
  • Use for: Raspberry Pi 4

package list:

  • 4 x Cooper heat sink

Rpi 4 Aluminum Heatsink Black Silver Set (4pcs)

●  Introduction:

This raspberry pi 4 heatsink is made of  aluminum alloy, a total of 4 pcs of the heatsink as one set, Factory wholesale cheap price, easy to use with a back thermal pad, and compatible with Raspberry Pi 4B

●  FOB Reference Price

$0.3– $0.59  piece    |     50 set/ set (Min. Order)

>>Request a sample<<

●  Lead Time:

Quantity(Pieces) 10- 100 >100
Est. Time(days) 3 Negotiable

●  Customization:

Customization Customized logo Customized packaging Graphic customization
Quantity(Pieces) 200 500 2000

Package & Delivery

package opp plastic clear bag, then into a carton
shipping way sample: air express or China post   /mass products: by air express or by sea

● Payment:

L/C,  T/T, Western Union, MoneyGram, Paypal payments

1. Does the Raspberry Pi 4 need a heatsink?

When you get the raspberry pi 4 and can not wait to play with it, you will get start to worry that how to make the heat dissipation. especially when the board is under full operation and with your own custom software, the temperatures will rise rapidly. so some people asked:

Does the raspberry pi 4 need a heatsink?

In one word, the Raspberry Pi 4 runs great with no kind of external heatsink and therefore the software throttling keeps everything within safe operating temperatures. However, if you’re using custom software or are overclocking, you almost certainly want to use a group of quality heatsinks.

Raspberry pi Board overheating protection is inbuilt
The Raspberry Pi 4 could also be the dimensions of a smartphone, but it couldn’t be more different, which includes how heat is handled. The Raspberry Pi won’t slow to a crawl when it gets throttled because it had been designed to be used outdoors or in a roomy enclosure.

Thermal throttling is when a computer’s software detects that temperatures have risen above a predetermined safe reading and therefore the CPU is manipulated in order that it uses a slower clock speed. This happens on every computer, but you notice it more on some than others. When you’re employing a device that’s designed to be thin and inside a sealed case, sort of a phone or a laptop, the performance hit is often noticeable because the throttling has got to happen sooner and be more aggressive.

With the Raspberry Pi, an equivalent software-based throttling is employed but you will not hit the wall as soon and you will recover faster because there’s more airflow. As long as you’re using things as intended, that is.

The situation that needs an external heatsink

If you’re running a custom version of the OS or an alternate OS, or you’re pushing things to the limit by overclocking, you would possibly see some performance loss as things aren’t tuned to figure together unless you are doing it yourself. the simplest thanks to prevent or minimize this is often by employing a set of heatsinks. a little investment can make an enormous difference, and by placing a heatsink over the chips that tend to urge the most well-liked you’ll mitigate much of the throttling performance drop. Luckily there’s one specifically sold for the Raspberry Pi 4.

2. How to install the heatsink on raspberry pi 4?

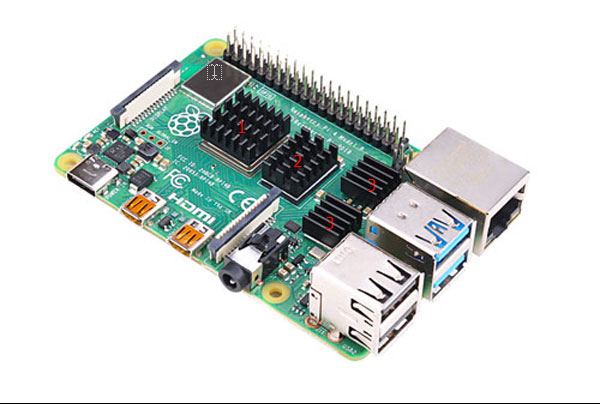

This Aluminum heatsink for raspberry pi 4 comes with 4 pcs for one set. following the below steps of Raspberry Pi 4 heatsink placement.

  1. get the 4 pcs aluminum heatsink out of the clear PP bag
  2. tear the backside protect pad, put the thermal pad side directly to the board’s right positions
  3. With dimensions of 14mm x 14mm x 6mm, for the main processor  (1)
  4. with dimensions of 14mm x 9mm x 5mm, for the RAM chip (2)
  5. with dimensions of 9mm x 9mm x 5mm, thin, for Ethernet and USB chip (3)

the picture is shown below:

We have also conducted the strain test as shown below. The test is completed to point out the effectiveness of the heatsink to scale back or dissipate heat from the Raspberry Pi 4 Model B. Although the temperature doesn’t differ much it’s proved that it’s effective to slow down heat rise when pi runs, therefore you would possibly want to think about buying a cooler fan like a mini fan to reinforce the air ventilation and warmth dissipation for the RPi.
