Project Description

  • DC Motor Driver Module for Raspberry Pi Pico
  • DC Motor Driver Module for Raspberry Pi Pico
  • DC Motor Driver Module for Raspberry Pi Pico
  • DC Motor Driver Module for Raspberry Pi Pico
  • DC Motor Driver Module for Raspberry Pi Pico

DC Motor Driver Module for Raspberry Pi Pico with Driving up to 4x DC Motors

  • FOB Reference Price

Get The Latest Price
  • $12.3 – $14.25/ Piece     |     5 Piece/Pieces (Min. Order)

  • Lead Time

Quantity(Pieces) 10- 100 >100
Est. Time(days) 3 Negotiable
  • Payment: L/C,  T/T, Western Union, MoneyGram, Paypal payments

Request A Sample !
11
44 2
123

Quick Details

Item Name: DC Motor Driver Module for Raspberry Pi Pico with Driving up to 4x DC Motors Model No.: MD-RPPICO-M-3
Brand: MaidaTech Material: PCB
Style: expansion board Compatible: Raspberry Pi Pico

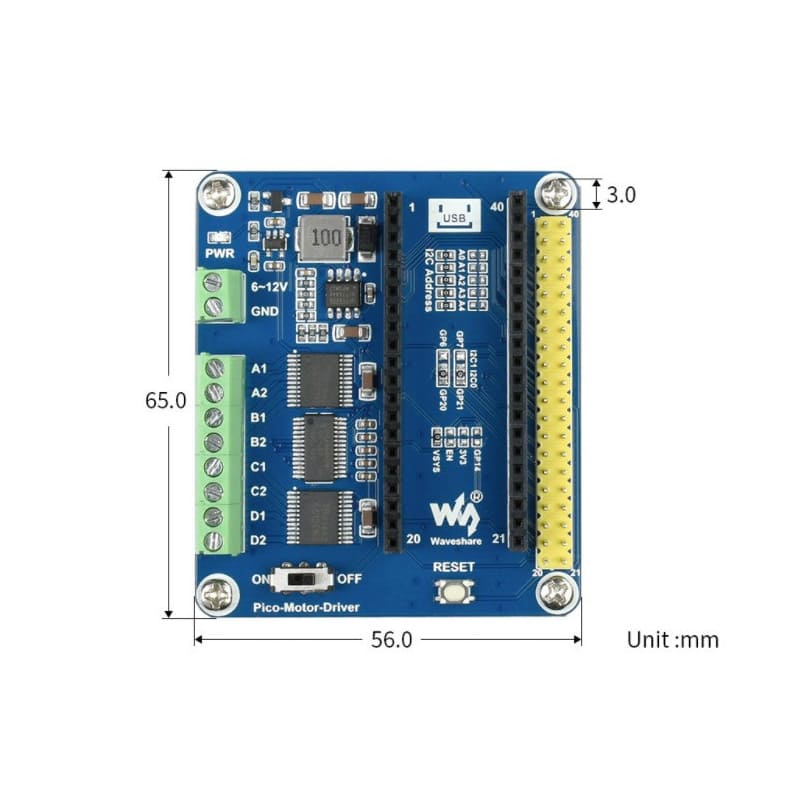

Original: China( Mainland) Size: 56*65mm
Products catalogue Raspberry Pi Pico expansion board Customization: Logo/ Graphic/packaging
package paper box package or custom MOQ 5pcs

More Details

Name: DC Motor Driver Module for Raspberry Pi Pico with Driving up to 4x DC Motors

Product details

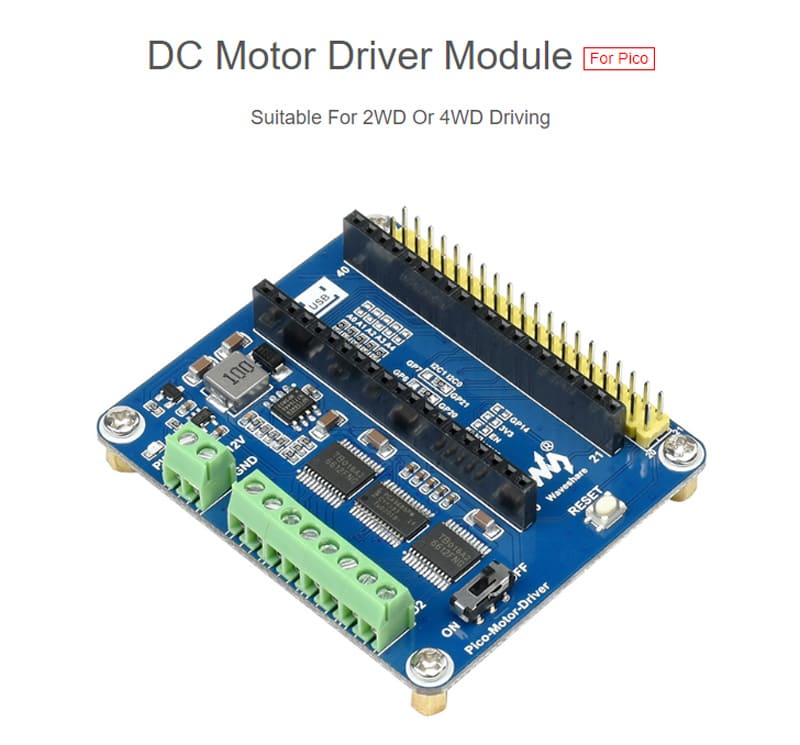

  • Features a standard Raspberry Pi Pico header, offering support for the entire Raspberry Pi Pico series.
  • Controlled via I2C communication, providing compatibility with 32 different I2C addresses through the configuration of 5 address jumpers.
  • Equipped with an onboard PCA9685 chip, it enables precise 12-bit hardware PWM control for adjusting motor speed.
  • Includes an onboard TB6612FNG dual H-bridge motor driver, ensuring high efficiency and minimal heat generation.

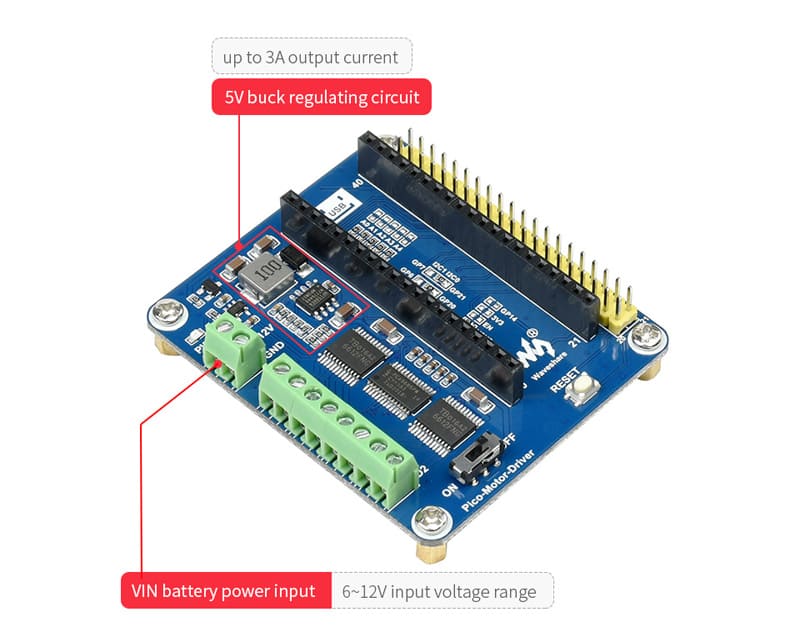

  • Integrates a 5V regulator with a maximum output current of up to 3A, allowing power to be supplied from a battery through the VIN terminal.

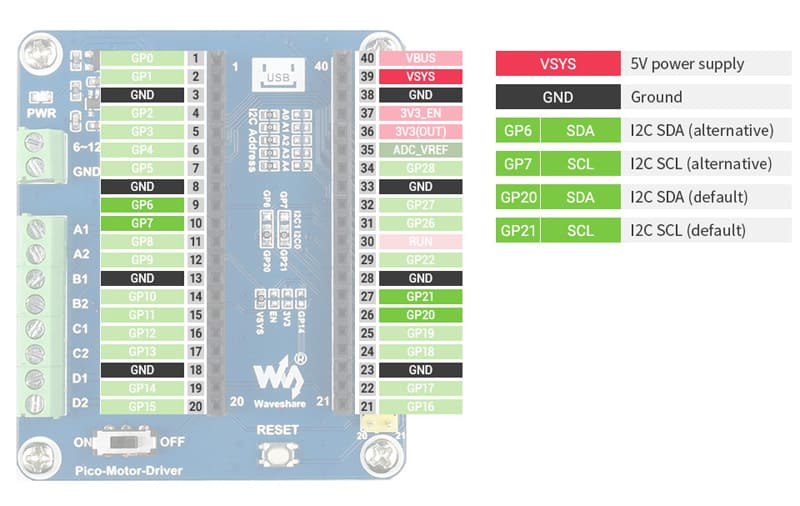

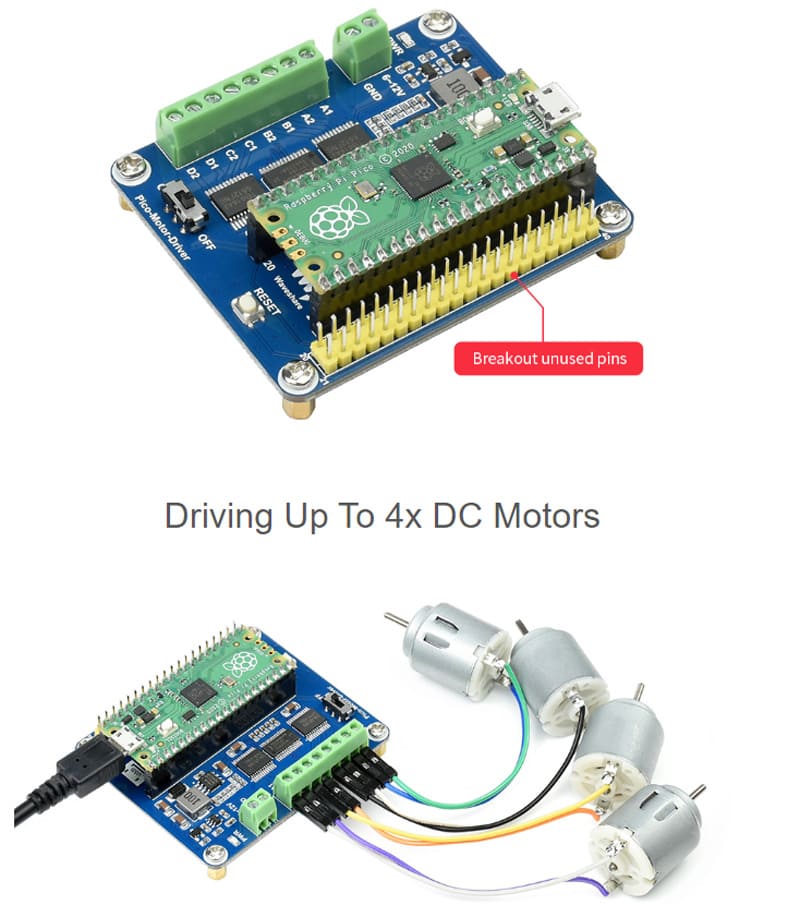

  • Provides breakout access to unused pins on the Raspberry Pi Pico for straightforward expansion and customization.
  • Comes with comprehensive development resources and a manual, featuring examples in both C/C++ and MicroPython for Raspberry Pi Pico.
Specifications
OPERATING VOLTAGE 6~12V (VIN terminals) LOGIC LEVEL 3.3V
PWM DRIVER PCA9685 MOTOR DRIVER TB6612FNG
CONTROL INTERFACE I2C DIMENSIONS

22 3 1

22 4

22 1

22 2

22 3

DC Motor Driver Module for Raspberry Pi Pico with Driving up to 4x DC Motors

●  Introduction:

High-Quality DC Motor Driver Module for Raspberry Pi Pico with Driving up to 4x DC Motors

●  FOB Reference Price

$12.3 – $14.25/ Piece   |     5 pieces/ Piece (Min. Order)

>>Request a sample<<

●  Lead Time:

Quantity(Pieces) 10- 100 >100
Est. Time(days) 3 Negotiable

●  Customization:

Customization Customized logo Customized packaging Graphic customization
Quantity(Pieces) 200 500 2000

Package & Delivery

package opp plastic clear bag, then into a carton
shipping way sample: air express or China post   /mass products: by air express or by sea

● Payment:

L/C,  T/T, Western Union, MoneyGram, Paypal payments
